即使是电影明星，魅力也必不及此：风采动人、激荡心神而又清灵自然。再加上非同凡响的声音准确度和空间精度，这就是一款优质中置扬声器所应具备的一切品质——而Model 204/2c则正是这样一款产品。

真实再现对话和语音需要绝佳的即时性，从而令屏幕上的画面动作达到惊人的逼真效果。无论播放音乐还是电影，Model 204/2c都能奉上让您欲罢不能的视听体验。

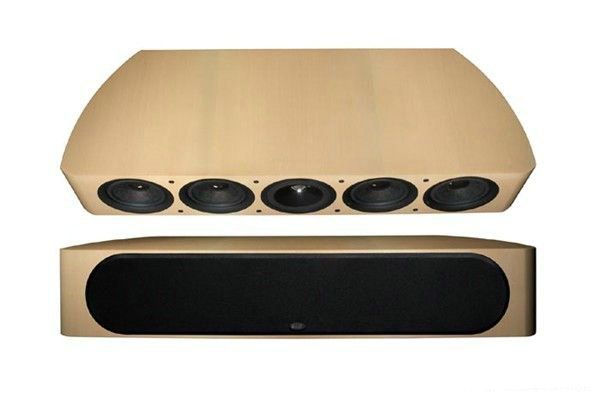

Model 型号 Model 204/2c
Design 设计 Bass reflex three-way centre loudspeaker, magnetically shielded
Drive Units 驱动单元 4 x 165mm (6.5in.) LF, 1 x 165mm (6.5in.) Uni-Q MF including a 25mm (1in.) titanium HF
Crossover Frequencies 分频点 400Hz, 2.3kHz
Sensitivity (2.83V/1m) 灵敏度 (2.83V/1m) 90dB
Frequency Response (+/-3dB) 频率响应 (+/-3dB) 53 Hz - 60 kHz
Maximum Output 最大输出 115dB
Input Impedance 输入阻抗 8 Ohms (3.2 Ohms min)
Magnetic Shielding 磁屏蔽功能 Yes
Weight 重量 34.6Kg (76lbs)
Dimensions (H x W x D) 尺寸(高 x 宽 x 深) 200 x 1100 x 425 mm (7.9 x 43.3 x 16.7 in.)
Finishes 颜色 Piano Black, High Gloss American Walnut, High Gloss Cherry, Satin Black, Satin American Walnut, Satin Cherry and Satin Sycamore real wood veneers

钢琴黑
闪烁着大三角钢琴精美涂漆的镜面光泽、纯黑色高光颜色光洁迷人，凸显了新一代Reference系列柔和流丽的箱体曲线。

黑色
一如亮泽的钢琴黑的高雅端庄、诱人魅惑，光彩却更加含蓄柔和。

亮泽胡桃木
色彩浅至深巧克力棕，间或闪烁一抹隐约的紫色和深色纹路。浓丽的光泽完美衬托出稍显稀疏、多呈匀直的木纹所散发的独特气质。

亮泽樱桃木
高雅的樱桃木，木质光滑、木纹均匀，漂亮的天然木色呈现的色彩浅至温暖柔和的棕红色、深至浓丽的深红色 ，同时夹杂着深色的斑纹，被视为最优质的箱体和乐器材料。

悬铃木
呈现奶白色至浅黄色的悬铃木是制作小提琴背板的理想材料，木质均匀细密，均匀细密的木纹交错而有条理，独特的光滑表面能够完美衬托出迷人的自然光泽。

胡桃木
并不是每个人都喜欢亮泽表面的明亮光彩，因此，KEF还提供了细腻光滑表面的胡桃木饰面，气质独特的胡桃木呈巧克力棕色、略带紫色调、木纹平直，表面又更富自然光泽。

樱桃木
饰面的优良品质一如亮泽樱桃木，而表面光泽则更加细腻，樱桃木是制作各种箱体的最佳木材之一。

定制颜色石墨


灰皮诺酒

星尘

淡金

石榴石

蓝宝石

香橙雪葩

酸橙雪酪

柠檬冰沙

雪白

赛车红

赛车蓝

Uni-Q®
KEF’s latest Uni-Q driver array is the most natural-sounding yet. The tweeter at the centre of the midrange cone now has a vented three-magnet motor system and a unique new braced dome, creating a perfectly time-aligned point source whose directivity is optimised by the reprofiled cone. As a result, dispersion is wider than ever. Power response is more uniform. Multi-channel imaging is even more stable - and stunningly realistic.

Crossover
The Reference Series crossovers are computer modelled to optimise driver integration and response accuracy, and then fine-tuned by ear to ensure naturalness and a musically rewarding listening experience. Separate circuit boards are used wherever possible for the different frequency bands, with all components carefully laid out to minimise electro-magnetic interactions, and all boards are mechanically decoupled to isolate them from cabinet vibration. The quality of the signal path is maintained by taking advantage of the minimal losses in polypropylene capacitors and the linearity of air-cored inductors and the internal cabling is chosen for its accurate, neutral sonic character.

Faraday Rings

KEF engineers have succeeded in greatly reducing the distortions that affect moving coil drive units by adding twin, balanced, Faraday rings above and below the voice coil. The negative effects caused by flux modulation and the variation of coil inductance with position are virtually eliminated by these carefully designed, low impedance ‘shorted turns’. By generating a magnetic field that cancels the unwanted field from the voice coil, this innovation reduces harmonic distortion by as much as ten times (20dB). Extending the benefits still further, the physical prescence of the metal rings aids heat dissipation over the whole length of the voice coil, thereby improving the dynamic performance and power handling.

Cabinet
Precision engineered to eliminate every unwanted vibration, Reference Series cabinets are works of art in themselves. Massive internal bracing tailors the volume of each enclosure to the exact parameters of its drive unit. Extensive mechanical and acoustic damping, together with independent driver loading and KEF’s decoupling techniques, creates inert enclosures that eradicate any vestigial panel resonance, standing waves, stray reflections or box colourations.


   Model 204/2c Stand

支架尺寸 (高x宽x深)
465 x 1100 x 425mm (18.3 x 43.3 x 16.7英寸)

颜色
