Onix(欧尼士) A55 合并式功放

Debut Series amplifier, considered the entry level of new product range ONIX, having a band of admirers of her own. The technical features and components used, make it a BEST BUY at the time. The listening test is surprising, at a very accessible price, combines a generous power.


Brushed aluminum front panel, available in silver and black glass "style ONIX", accompanied by steel knob and buttons neatly arranged, light blue to select different sound sources with selector relay. No. 5 audio inputs dedicated.









RCA outputs, high quality panel, CD 24K output, net filter power supply plug, 4 large gold outputs for speakers.

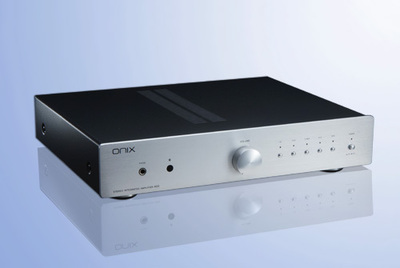

Integrated Stereo Amplifier A 55 from ONIX




Selected components, assembled on a motherboard with great order, outstands the toroidal transformer and power amplifiers Sanken mounted on a generous cooling fins, accompanied by Elna for Audio selected capacitors.




Components:

* 2SC2837/2SA1186 Sanken power transistors for each channel

* Benches filter capacitors 2 x 10.000mf / 63V ELNA

* 300W Toroidal Transformer Core C

* Hi-End motorized Alps potentiometer.


Tecnical Freatures:

* Output power: 2 x 55W RMS (8 ohms)

* Frequency response: 10Hz - 30kHz (-0.5 dB)

* Input Sensitivity 350mV/47Kohm

* Signal/Noise Ratio:> 88dB (A weighted)

* Channel separation:> 55dB

* THD: 0.005% (3W/8ohm)

* Dimensions: (W x D x H): 430 x 372 x 91 mm

* Weight: 8.7 kg

* Power consumption: 300W

* Power supply: 220V-240V AC.










Heavy aluminum remote control. Made with high quality materials, resistant to time. Suitable to control all functions of each ONIX product. Easy to understand, thought for a simple and intuitive use.
