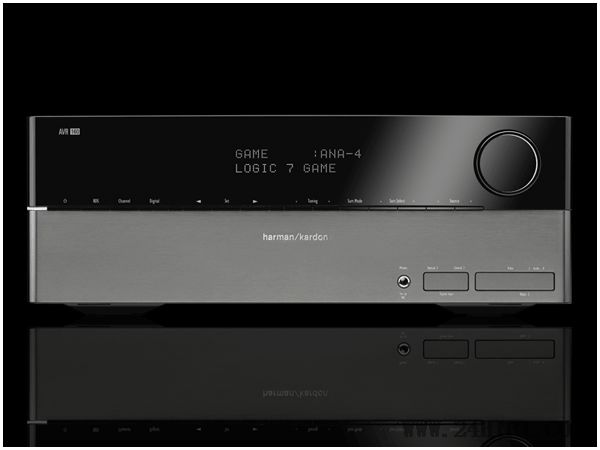

Harman kardon/哈曼卡顿 AVR 160

7 x 35W 7.1 声道 A/V 接收器，带 HDMI 延伸器

一般而言，人们选择 Harman Kardon 零部件是因为看重它的性能，而非价格。 但 AVR 160 可谓质优价廉。 它配有高带宽数字/模拟转换器以及杜比 TrueHD 和 DTS-HD 主体音频解码技术，可带来 Blu-ray Disc™ 技术的全方位音频冲击体验。AVR 160 具有 Harman Kardon 久负盛名的真正性能和易用性，而价格却是出人意料地便宜。

Specifications

Description 7.1-channel AVR
Stereo Power (FTC) 40 x 2
Multichannel Power (FTC) 35 x 7
Amplifier Type High-current ±25 amps
THD @ Impedance 0.07% @ 8 ohms
Bandwidth 20Hz – 20kHz
Bandwidth @ 1W (+0dB/–3dB) 10Hz – 130kHz
Signal-to-Noise Ratio (IHF-A) 100dB
Power Supply Independent front & rear
Dolby Digital Plus Yes
Dolby True HD Yes
Dolby® Digital Dolby Digital EX
Dolby Pro Logic® II Pro Logic Iix
Dolby Volume No
Dolby Virtual Speaker Harman virtual speaker
DTS-HD/DTS-HD Master Audio Yes/Yes
DTS® 5.1 Yes
DTS-ES® 6.1 Discrete & Matrix Yes
DTS 96/24™ Yes
DTS Neo:6® Yes
Logic 7® Yes
iPod Connectivity Aux input
Headphone Modes 2-channel, Harman Headphone
Multizone Capability No
Assignable Rear-Channel Amplifiers No
A-BUS® Ready No
EzSet® Capability EzSet/EQ™
S-Video/Component Video Inputs 0/4
Analog Audio Inputs 6
Digital Audio Inputs (Coax/Optical/USB) Rear panel 2/2, Front Panel 1/1
Digital Audio Outputs (Coax/Optical) Rear panel 1/0
USB Input For software update
Ethernet Input No
Digital Input Polling All video inputs
Direct Audio Inputs 7.1
HDMI™ Inputs/Output 3/1
HDMI Type 1.3a Switching
Preamp Outputs Subwoofer
Component Video Inputs (Assignable) 2 @ 50MHz
Bass Management Quad crossover
On-Screen Display Yes
Input Titling All inputs
DSP Processor Cirrus® CS 49700
Video Processing / Conversion No
High Resolution GUI No
A/V Sync Delay per Input 80 mS
IEC Detachable Power Cord No
System Remote 6-device, preprogrammed
IR-In/Out Jacks Yes
IR Carrier Output No
Discrete Remote On/Off Codes Yes
Low-Voltage Trigger Jacks No
External Data Port No
Speaker Terminals Color-coded binding posts
Dimensions (H x W x D) 165mm x 440mm x 460mm
Weight 9.1kg
