您现在的位置：首页>>产品详细信息

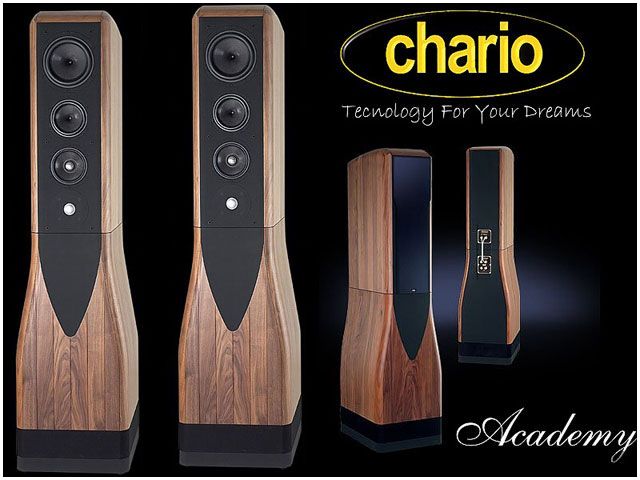

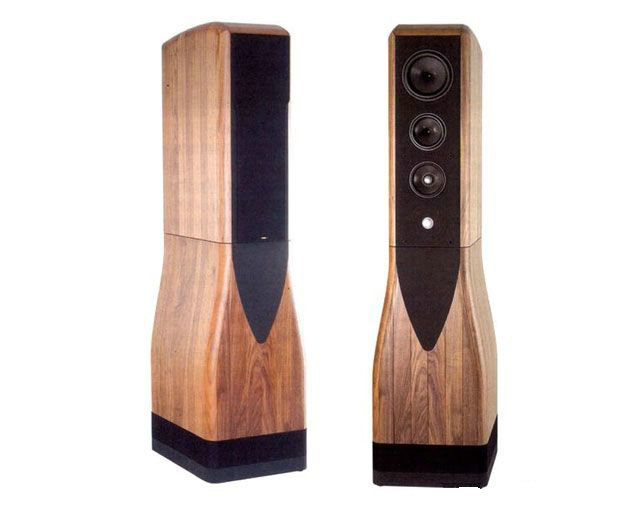

Chario/卓丽 Serendipity 落地式音箱
Serendipity
Ammiraglia della Serie Academy, rappresenta la raffinata sintesi di tutti gli studi che hanno caratterizzato l’attività di Chario Loudspeakers dal 1975. Troppe parole sarebbero necessarie per descriverne la struttura ed il funzionamento, per questo preferiamo riassumere il attraverso i concetti che lo hanno reso famoso nel mondo:
NRS 2π
Hyper Exponential Hourglass
Reversed Vertical Array
Silversoft Dome
Rohacell®
Full Apex™
Polyring
Neodymium
Overlapping Points
WMT™ Alignment
SoundCap®
| 技术参数： | Serendipity |
|---|---|
| Low Frequency Load | NRS 2p sr Vented Isobaric Compound |
| Vent Geometry | Bidimensional Hyper-Exponential Hourglass Type |
| Configuration | 5-way Reversed Vertical Alignment Free-Standing |
| Drivers | 1 Tweeter 32 mm SILVERSOFT dome NeFeB motor |
| 1 Midrange 130 mm ROHACELL® Poly-Ring NeFeB motor | |
| 1 Woofer 130 mm ROHACELL® Full-Apex™ Poly-Ring NeFeB motor | |
| 1 Woofer 170 mm ROHACELL® Full-Apex™ Poly-Ring NeFeB motor | |
| 2 Sub 320 mm Natural Fibres - 2 Waves Surround HF motor | |
| Sensitivity | 93 dB SPL normalized to 1 m / 2.83 Vrms / decorrelated L/R pink noise in IEC |
| 268-13 compliant listening room | |
| Low Frequency Cut Off | 23 Hz @ -3dB referred to C4 WETS |
| Overlapping Points | 240/500/1250/1850 Hz |
| Rated Impedance | Modulus 4W (min 3.0) Argument ±36° |
| Size | 1610 x 400 x 580 mm (H x W x D) |
| Finish | Solid Walnut , Solid Cherry & HDF |
| Weight | 100 kg |
| Cabinet | Solid walnut or solid cherry and HDF. The structure comprises two cabinets: the |
| lower contains two subwoofers; the upper contains two woofers, one midrange | |
| and one tweeter. The two wood cases are separated by four cylindrical | |
| proprietary-engineered elastomeric puffers acting as vibration decouplers to | |
| dissipate mechanical energy by orthogonal elongation | |
| Speakers Orientation | Speakers should be tilted inward facing the listener |
| Listening Distance | Optimum speaker-listener distance > 3.5 m |
| Listening Layout | A carpeted floor in front of the speakers is recommended |
| Side And Back Walls | Should be at least 1m away from the speaker front baffle |
| Normal Amping 400 | Run the cable from the power amplifier to the lower terminals of the subwoofer |
| Watt / 4 Ohm Average | binding post, then connect upper terminals to the mid-high unit binding post by |
| Power Max | means of the short cable with banana plug provided with the speakers. |
| Bi-Amping 200 Watt / 4 | Run the cable from the power amplifier to the lower terminals of the subwoofer |
| Ohm Average Power | binding post leaving upper ones idle. Repeat to connect the power amplifier to |
| Max | the mid-high unit binding post (two terminals only) All quantities in SI Units |
