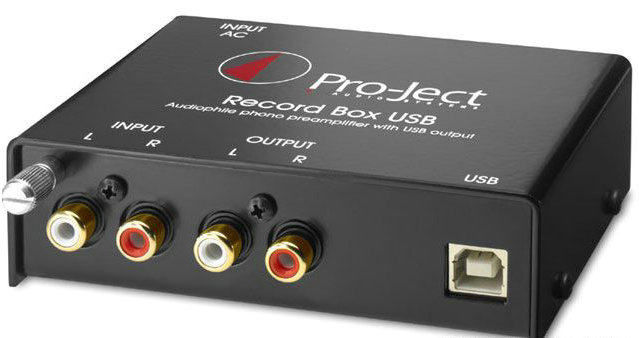

Technical data Pro-Ject Record Box USB
Input impedance 47kohms/100pF
Gain 32dB
Output voltage typically 200mV/1kHz at 5mV/1kHz
Noise floor 82dB (88dB - A weighted)
THD <0,05%
RIAA-equalisation curve accuracy 20Hz - 20kHz / max. 0,5dB
A/D converter 16-Bit Delta Sigma
Sampling rates 32, 44,1 and 48kHz
USB-output digital serial data protocol USB 1.1
Operating systems Windows® and MacOS®
Outboard power supply 16V/200mA AC, suitable for your country's mains supply
Power consumption 16V/100mA AC
Dimension W x H x D 105 x 30 x 75mm
Weight 350g without power supply
