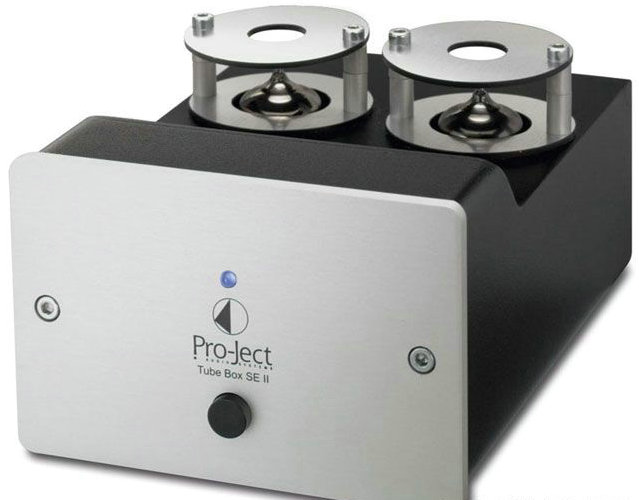

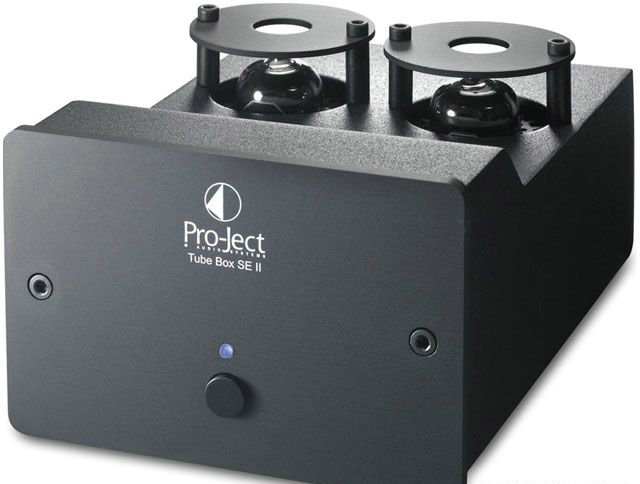

Pro-Ject/宝碟 Tube Box SE II 唱头放大器

Technical data Pro-Ject Tube Box SE II
Tubes 2 x ECC83 (12AX 7A)
Input impedances, MM 120, 220, 340 and 440pf/47kohm
Input impedances, MC 17, 18, 20, 22, 69, 100 and 220ohms/120pF
Output voltage 300mV/1kHz at 3mV/1kHz (MM input)
Gain, MM 40dB
Output voltage 300mV/1kHz at 0,3mV/1kHz (MC input)
Gain, MC 60dB
Noise floor, MM 95dB (100dB - A weighted)
Noise floor, MC 75dB (80dB - A weighted)
THD MM 0,03%
THD MC 0,1%
RIAA-equalisation curve accuracy 20Hz - 20kHz / max. 0,3dB
Subsonic filter at 18Hz with 24dB/octave
Outboard power supply 16V/1.000mA AC, suitable for your country's mains supply
Power consumption 16V/850mA AC
Dimensions W x H x D (D with sockets) 103 x 72 x 144 (156)mm
Weight 1.050g without power supply
