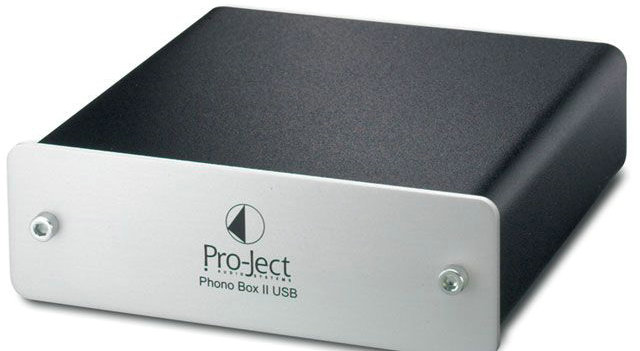

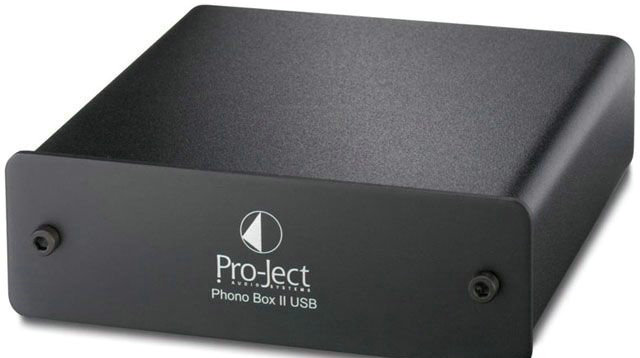

Technical data Pro-Ject Phono Box II USB
Input impedance, MM 47kohms/120pF
Input impedance, MC 100ohms/120pF
Gain, MM 40dB
Output voltage typically 300mV/1kHz at 3mV/1kHz (MM input)
Gain, MC 60dB
Output voltage typically 300mV/1kHz at 0,3mV/1kHz (MC input)
Max. output 9,5V (1kHz)
Noise floor, MM 86dB (94dB - A weighted)
Noise floor, MC 68dB (75dB - A weighted)
THD, MM 0,01%
THD, MC 0,05%
RIAA-equalisation curve accuracy 20Hz - 20kHz / max. 0,5dB
A/D converter 16-Bit Delta Sigma
Sampling rates 32, 44,1 and 48kHz
USB output digital serial data protocol USB 1.1
THD 0.005%
Noise floor 96dB
Dynamic range 93dB
Outboard power supply 16V/200mA AC, suitable for your country's mains supply
Power consumption 16V/100mA AC
Dimensions W x H x D (D with sockets) 103 x 36 x 103 (115)mm
Weight 570g without power supply
