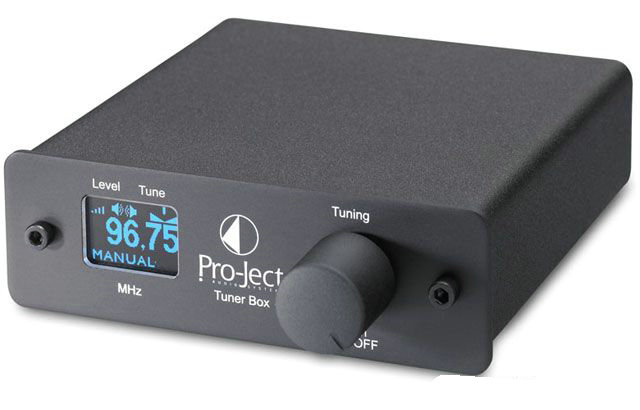

Technical data Pro-Ject Tuner Box
Tuning range FM-band 87,5 - 108,5MHz (50kHz steps)
Programmable presets 8
Frequency response 20Hz - 20kHz/±1dB
Noise floor -50dB
THD 0,05% / Df 75kHz and f mod 1kHz
Stereo separation 30dB/ Df 75kHz and f mod 1kHz
Sensitivity 7dB/µV mono, 17dB/µV stereo /75 ohms
Antenna input 1 x co-axial DIN-socket (75 ohms) / US-model F-socket
Line-level output 1 pair RCA/Phono sockets
Trigger in and out 2-pole co-axial Ø 2,5mm jack
Output voltage 0,775Veff
Outboard power supply 16V/200mA AC, suitable for your country's mains supply
Power consumption 16V/70mA AC
Dimensions W x H x D (D with sockets) 103 x 36 x 103 (112)mm
Weight 565g without power supply
