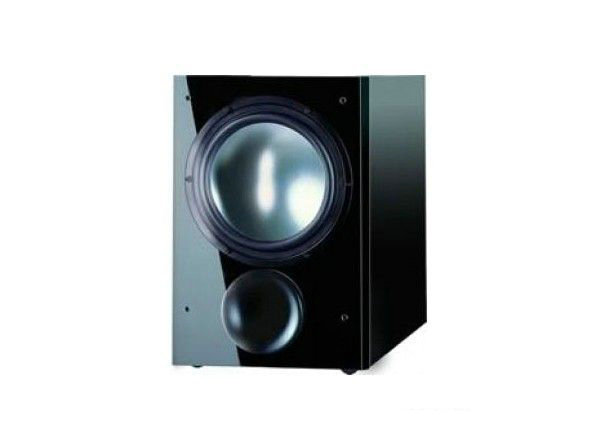

ELAC/意力 SUB 111.2 ESP 低音炮

产品参数:


Specifications
(Specifications and design features are subject to change.)

Dimensions H × W × D: 400 × 257 × 400 mm Details
Weight: 13 kg
Principle: 1-way active, bass reflex
Woofer: 1 × 200 mm AS cone
Upper Cutoff Frequency: 40 ··· 180 Hz, adjustable
Frequency Range acc. to IEC: 268-5 35 ··· 240 Hz
Max Amplifier Power: 80 W (sine) 100 W (pulse)
Inputs:
1 × line channel (RCA)
3 × LS input channels
Input Sensitivity Line: 1 × 200 mV
LS:    3 × 2.5 V
auto switching threshold: 5 / 80 mV
shutoff delay about: 15 min
Input Impedance Line: 35 kΩ
LS:    220 Ω, floating
Outputs: 3 × LS passive high-pass filter with 220 µF
Mains Voltages:
220 ... 240 V~ / 50 ... 60 Hz
110 ... 120 V~ / 50 ... 60 Hz
Power Consumption:
max. 2 W (standby)
max. 200 W (at full-load operation)
