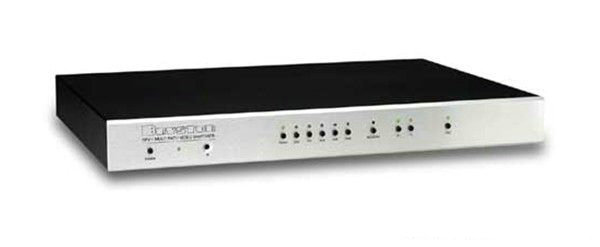

SPV-1 VIDEO SWITCHER

The Bryston SPV-1 is a high quality, multi-path, video switcher intended to be used in combination with the Bryston SP2 surround processor or as a stand alone video switcher.
INPUTS

The Bryston SPV-1 Video Switcher offers six Composite inputs, six S-Video inputs and two Component inputs. Each set constitutes an isolated switching path.
OUTPUTS

Outputs include main (monitor) for Composite, S-Video, and Component as well as record outputs for Composite and S-Video. The main outputs have On-Screen Display (OSD) capability when used in combination with the Bryston SP2 surround processor or any other RS-232 control system.
On-Screen Display

On-Screen Display (OSD) allows set-up and status information from the SP2 to be displayed on your video monitor. If OnScreen Display (OSD) is desired, this can be toggled on or off by pressing the OSD button on the SP2 remote control or on the SPV-1 front panel. The OSD messages will be sent from the SP2 to the SPV-1 and displayed on the video monitor. OSD messages are displayed when changing inputs, changing mode, changing volume, or while using the setup menus.
INFRA-RED

Infra-Red (IR) control is also offered. The functions are accessed by the SP2 remote control, or by Pronto codes available from Bryston.
ONE TWO PUNCH

The combination of the Bryston SP2 Surround Processor and SVP-1 Video Switcher provides for totally seamless integration of all audio and video functions.
POWER UP

The Bryston SP2 contains all the RS-232 codes needed to simultaneously control the switching functions of the SPV-1 When the SP2 is powered up, an RS-232 command will also power up the SPV-1. When an input is selected on the SP2 (manually or remotely), it sends a message to the SPV1 to switch the corresponding inputs to the main and record outputs simultaneously. If required you can switch the record path independantly from the monitor.
