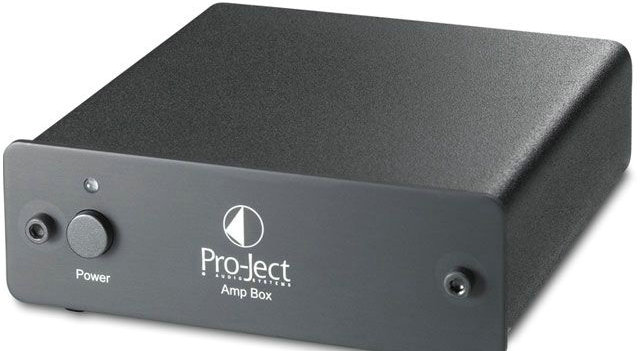

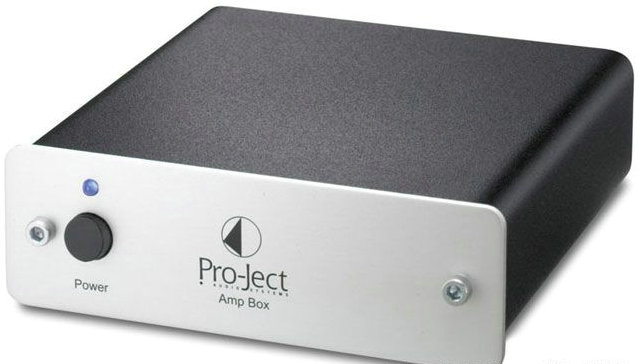

Technical specifications Pro-Ject Amp Box
Power output 2 x 20W/30W at 8ohms/4ohms (both channels driven)
Frequency response 5Hz - 20kHz (+ 0dB, - 0,5dB)
Channel separation > 40dB at 20kHz
Noise floor > -100dB (A weighted)
THD < 0,05% at 10W
Gain 22dB
Pre in 1 pair RCA/Phono sockets
Input sensitivity 1V
Input impedance 47kohm
Speaker connectors 4mm banana plugs, spades connectors or naked wire
Trigger 12V DC switching voltage
Trigger in and out 2-pole 2,5mm co-axial jack
Outboard power supply 20V/3A DC (peak 7A DC), suitable for your country's mains supply
Power consumption 20V/3A DC
Dimensions W x H x D (D with sockets) 103 x 36 x 103 (122)mm
Weight without power supply 670g
