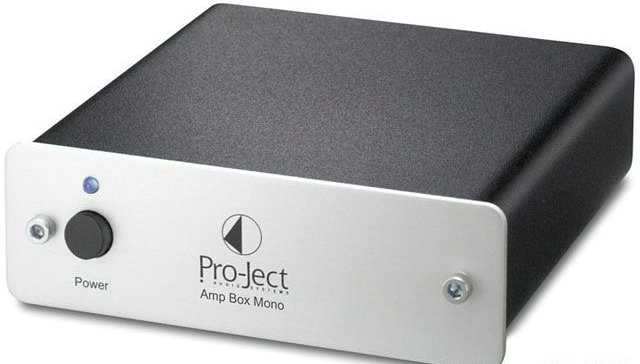

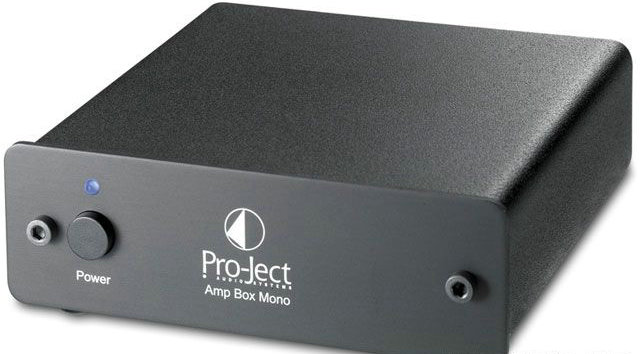

Technical specifications Pro-Ject Amp Box Mono
Power output 28W/40W at 8ohms/4ohms
Frequency response 5Hz - 20kHz (+ 0dB, - 0,5dB)
Noise floor > -100dB (A weighted)
THD < 0,05% at 10W
Gain 22dB
Pre in 1 RCA/Phono socket
Input sensitivity 1V
Input impedance 47kohm
Pre out 1 RCA/Phono socket
Speaker connector 4mm banana plugs, spades connectors or naked wire
Trigger 12V DC switching voltage
Trigger in and out 2-pole 2,5mm co-axial jack
Outboard power supply 20V/3A DC (peak 7A DC), suitable for your country's mains supply
Power consumption 20V/3A DC
Dimensions W x H x D (D with sockets) 103 x 36 x 103 (122)mm
Weight without power supply 670g
