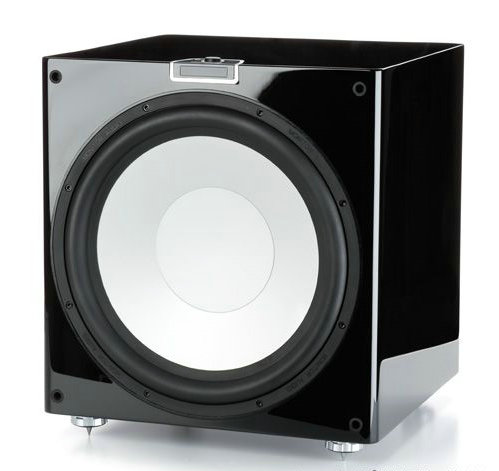

GXW15

产品规格: GXW15
Item Value
System Format: Sealed Cabinet. 25mm M.D.F construction with
  internal bracing. Sealed amplifier compartment
Low Frequency Limit: 18 Hz
Upper Frequency Limit: 40 - 120 Hz Variable
Low Pass Filter Alignment: Active 4th order 24dB/octave (6/12/18/24 dB user
  adjustable)
Amplifier Power Output 650 watts Continuous. 1200 watts (peak)
Amplifier Classification D2AudioTM* DSP controlled, Class-D amplifier
  system. High current switch mode power supply
  (smpsu)
Equalisation 4 Settings (Off/Music/Movie/Impact)
Phase Control 0-90-180-270 degrees
Auto Sensing Input Level Requirements Line Level > 2mV. Standby after 10 minutes if no
  signal sensed
Digital Volume Level -60 to +10dB in 1dB increments
Drive Unit Complement 1 x 15” C-CAM® sub-woofer driver featuring triple
  suspension
  3” long throw voice coil
12V Trigger Input 3.5mm mono jack socket
Connections Stereo RCA in/out
  LFE in/out
  12V Trigger in (3.5mm mono jack)
  LEO* - 3.5mm Microphone input jack (microphone
  supplied)
Input Impedance 20 kohms
Dimensions (H x W x D) 430 x 400 x 400 mm (16 15/16 x 15 3/4
   x 15 3/4 Inches)
Grille Depth 28 mm (1 1/8 Inches)
Weight (unpacked) 35.3 kg (77.6 lbs)
Mains Input Voltage 100 - 120 Vac / 220 - 240 Vac 50/60 Hz (Factory
  preset
Electrical Certifications CE/CB/ETL/Fcc/ErP (Energy saving compliant)
Power Consumption Maximum 1000W. Standby < 0.5W (ErP
  Compliance)
Fuse Type 20mm UL/VDE (Value is region specific)
IR Remote Control Code NEC SH6122
