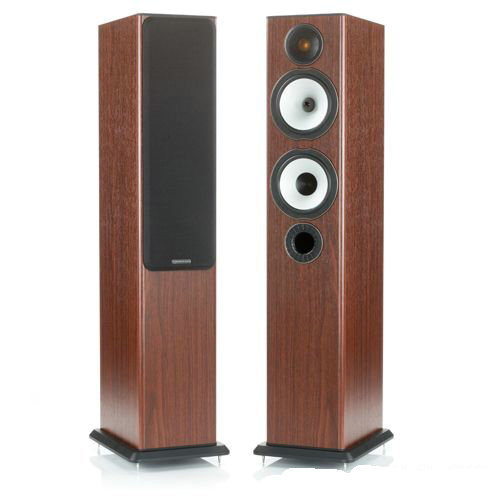

BX5

产品规格： BX5
Item Value
Frequency Response +/- 3dB: 36Hz - 30kHz
Sensitivity (1W@1m): 90 dB
Nominal Impedance: 8 ohms
Power Handling (RMS): 120 W
Recommended Amplifier
Requirements (RMS): 30 - 120 W
Cabinet Design: Dual chamber bass reflex – Ported front
  and rear. HiVe®II port technology
Drive Unit Complement: 1 x 140mm (5 1/2") C-CAM® bass.
  1 x 140mm (5 1/2") C-CAM® bass mid-
  range driver.
  1 x 25 mm (1") gold dome C-CAM®
  tweeter.
Crossover Frequency: LF: -6dB @ 400Hz
  MF/HF: 3.2Hz
External Dimensions: 850 x 166 x 248 mm
(H x W x D mm) (868 x 215 x 282 - inc Plinth)
External Dimensions: 33 7/16 x 6 9/16 x 9 3/4 inches
(H x W x D inches) (34 3/16 x 8 7/16 x 11 1/8 - inc Plinth)
Weight (Individual): 12 Kg (26.4 lbs)
