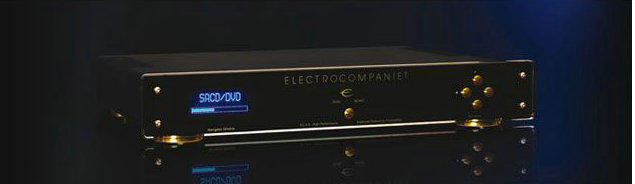

electrocompaniet/音乐之旅 EC 4.8 置放大器



EC The new Electrocompaniet referance preamplifier.

For more than 30 years, the name "Electrocompaniet" has been synonymous with the manufacture of great sounding power amplifiers.  The numerous prestigious international awards, as well as top ranking reviews, attest to the success and appreciation of the amplifiers.

Since 1999, we have had the same level of world-wide recognition with our reference CD player, the Electrocompaniet EMC 1.  The obvious
missing link has been a preamplifier matching the quality of the award-winning power amplifiers and reference CD player.

With the new Electrocompaniet two-channel EC 4.8 preamplifier, the missing link is now removed.

With its outstanding performance, excellent resolution, superb control and precise musical rendering, we have succeeded making a preamplifier that is true to our slogan, “Closing the gap to the master”.

Our new two-channel EC 4.8 preamplifier is sure to make all good power amplifiers sound even better!
The EC4.8 preamplifier is designed to fill our need for a advanced preamplifier in a higher price range. The preamplifier is designed as a slimline version, with a fully balanced electronic solution from input to output. It is designed as two separate mono preamplifiers, each with it’s own power supply. This preamplifier can be used with the included IR remote controller or as an option, together with the RF based remote controller ECT 2. The EC4.8 has the new SPAC network for safety control of the connected power amplifiers.

Gull_Forsterker_HighEnd-2009-2010

 thumb-golden-ear-2010



All measurements are made at 120V / 240V  //50Hz / 60Hz


Input impedance balanced (fixed) 47 Kohm
Output impedance 100 ohm
Input level    (Single ended) >15 Vp-p
Input level    (balanced) >30 Vp-p
Max output level    (Single ended) >15 Vp-p
Max output level    (Balanced) 30 Vp-p
Gain - 111dB to +6dB
Noice Floor <-130dB (@ 0dB gain)
Frequency responce 0.5 - 200.000 Hz
Channel Seperation > 120dB
THD + N <0.002%
IMD TBD

Power consumption (no load or signal) 30 W

Dimensions and Waight
Width 483 mm / 19 inch
Depth 386 mm / 16.1 inch
Height 76 mm / 4.5 inch
Weight 9 kg


Inputs
Balanced 2 x2 channel
Single ended 3 x 2 channel

Control Ports
Nettwork 3 x SPAC
Programming 1 x USB

Outputs
Balanced 1 x 2 channel
Single ended Record Out
