electrocompaniet/音乐之旅 AW 3X120-M 后级放大器



AW 3X120-M The smart challenger

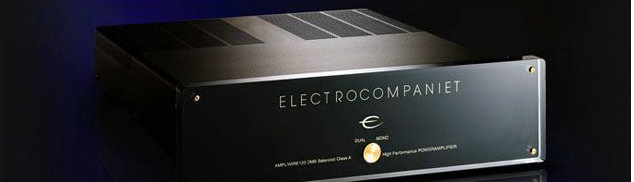

The Electrocompaniet AW 3x120-M is a true powerhouse in a compact design, organized as tree mono blocks.

What is so special about the AW 3x120-M amplifier? When used in multi-channel configuration, a pair of these three channel power amplifiers is an ideal choice for a home theatre. With a touch of the remote control, they switch over to bridged 400W, mono mode for High-End stereophonic playback. Other smart features of the Electrocompaniet AW 3x120-M include live feedback of the amplifier's "vital statistics" on the graphical remote control - ideal for those who like to push their music to its limits. The Electrocompaniet AW 3x120-M is smart, compact, flexible and packed with features.

Quite simply, it is state of the art.

All measurements are made at 120V / 240V //50Hz / 60Hz
Amplifier section
Output Impedance (20 Hz - 20 kHz) < 0,01 ohm
RCA (single) input impedance 220 kohm
XLR (balanced) input impedance 110 kohm
Input sensivity for rated output 1 V
Max. peak current > 100 A
THD
(measured at 1 kHz -1 dB, 8 W)		 < 0,002 %
Noise
(measured with both inputs shorted)		 400 Hz - 30 kHz : 90 µV
10 Hz - 30 kHz : 100 µV

Rated output power
8 ohms 2 x 120 W
4 ohms 2 x 200 W
2 ohms 2 x 350 W

Power consumption (no load or signal) 161 W

Dimensions
Width 483 mm / 19 inches
Depth 385 mm / 15 inches
Height 135 mm / 5.3 inches
Weight 19 kg. / 41.8 lbs.
