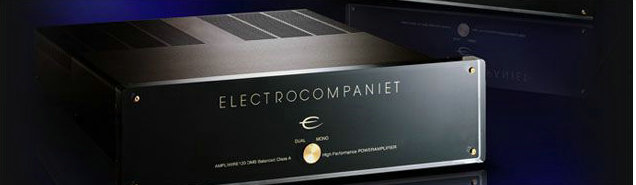

electrocompaniet/音乐之旅 AW2x120-M 合并式功放



AW2x120-M Flexible and expandable

The new Electrocompaniet AW 2x120-M is a flexible two-channel power amplifier. It can be used as part of our new multi-channel systems, or as a stand-alone two-channel power amplifier.

When used in multi-channel configuration, this amplifiers are an ideal choice for a home theatre.  With a touch of the remote control, they switch over to bridged 400W mono mode for High-End stereophonic playback. The AW 2x120-M is designed and built in the classic Electrocompaniet tradition, giving you a guarantee of lifelike sound reproduction and lasting build quality.

All measurements are made at 120V / 240V //50Hz / 60Hz
Amplifier section
Output Impedance (20 Hz - 20 kHz) < 0,01 ohm
RCA (single) input impedance 220 kohm
XLR (balanced) input impedance 110 kohm
Input sensivity for rated output 1 V
Max. peak current > 100 A
THD
(measured at 1 kHz -1 dB, 8 W)		 < 0,002 %
Noise
(measured with both inputs shorted)		 400 Hz - 30 kHz : 90 µV
10 Hz - 30 kHz : 100 µV

Rated output power
8 ohms 2 x 120 W
4 ohms 2 x 200 W
2 ohms 2 x 350 W

Power consumption (no load or signal) 161 W

Dimensions
Width 483 mm / 19 inches
Depth 385 mm / 15 inches
Height 135 mm / 5.3 inches
Weight 19 kg. / 41.8 lbs.
