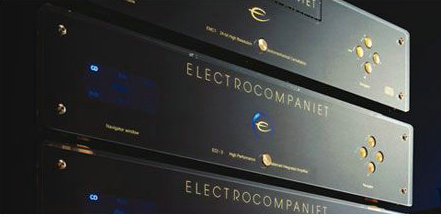

electrocompaniet/音乐之旅 ECI 5 合并式功放



ECI 5 Recommended Product 2008-2009

The Electrocompaniet ECI 5 is a DC coupled high performing, fully balanced, remote controlled integrated stereo amplifier with all latest upgrades included. Six inputs: two balanced three single and one direct.

Outputs: Balanced, single and REC. Balanced motorized volume control that does not degrade the sonic qualities of the unit. The Electrocompaniet ECI 5 is a DC coupled high performing, fully balanced, remote controlled integrated stereo amplifier with all latest upgrades included. Six inputs: two balanced three single and one direct. Outputs: Balanced, single and REC. Balanced motorized volume control that does not degrade the sonic qualities of the unit.

Relay input switching. Volume and input sources can easily be navigated via four Navigator touch buttons on the front panel or from the remote control. The select source is shown in the Navigator window.

The ECI 5 Features Electrocompaniet's unique FTT (Floating Transformer Technology) power supply designs. The ECI 5 contains the same components used in our most prestigious models. A current reservoir of 70.000uF delivers 2 x 120W of clean and powerful dynamics into an 8 ohms load. Like the rest of our amplifiers, ECI 5 is stable down to 0.5 ohms.
The balanced output of the ECI 5 can feed an additional power amplifier in a bi-amped set-up.

All measurements are made at 120V / 240V  //50Hz / 60Hz
Preamplifier section

Nominal Input impedance 330Kohm
Max. input level > 10 Volt RMS
Equivalent input noise < 4 µV
Pre-out gain balanced output (XLR) 1,37x
Pre-out gain single output (RCA) 1,25x

Amplifier section
Output Impedance (20 Hz -20 kHz) < 0,01 Ohm
Max. peak current > 80 A
THD
(measured at 1 kHz half power, 8 W)
< 0,007 %
THD
(measured at 1 kHz -1 dB 8 W)
< 0,008 %
Input sensitivity for rated output single ended  1,4V
Input sensitivity for rated output balanced 0,7V
Input sensitivity for rated output HT 6,5V
Rated output power
8 ohms 2 x 120 W
4 ohms 2 x 200 W
2 ohms 2 x 350 W
Power consumption
(no load or signal)
160 W

Dimensions
Width 483 mm / 19 inches
Depth 405 mm / 16 inches
Height 135 mm / 5,3 inches
Weight 16Kg / 35 lbs.
