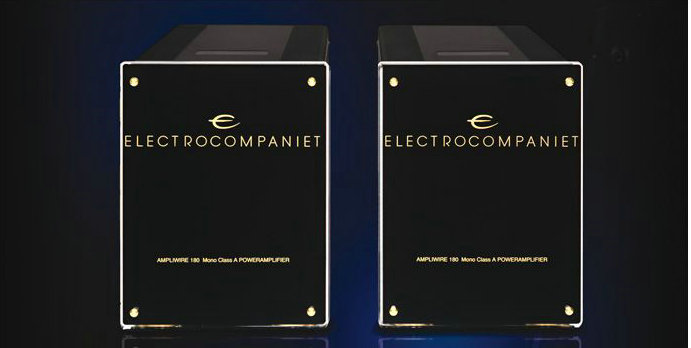

electrocompaniet/音乐之旅 AW180 Mono Block 单声道功率放大器



AW180 Mono Block

The Electrocompaniet AW180M monaural power amplifier represents the ultimate fidelity in sound reproduction.

Audiophiles, recording engineers, record producers and reviewers around the world rely on the AW180M’s faithful reproduction of the original master recording.

The stunning capabilities of the Electrocompaniet AW180M cannot be explained – they have to be experienced.

The AW180M incorporates such refined features as: FTT (Floating Transformer Technology) power supply, capable of delivering twice the current of a conventional power supply, a first class overall circuit design and state-of-the-art components. The Electrocompaniet AW180M features a balanced link to additional amplifier(s) for bi-amping. It can easily be used in bridged mode, delivering up to four times the power.

All measurements are made at 120V / 240V //50Hz / 60Hz
Amplifier section

Output Impedance
(20 Hz - 20 kHz)
< 0,008 ohm
RCA (single) input impedance 220 kohm
XLR (balanced) input impedance 110 kohm
Input sensivity for rated output 1 V
Max. peak current > 100 A
THD (measured at 1 kHz
half power, 8 W)
< 0,001 %
THD (measured at 1 kHz
-1 dB, 8 W)
< 0,001 %
Noise
(measured with both inputs shorted)
400 Hz - 30 kHz : 90 µV
10 Hz - 30 kHz : 100 µV

Rated output power

8 ohms 180 W
4 ohms 350 W
2 ohms 650 W

Power consumption
(no load or signal)
115 W

Dimensions
Width 215 mm / 8.5 inches
Depth 470 mm / 18.5 inches
Height 288 mm / 11.3 inches
Weight 22 kg. / 48.4 lbs.
