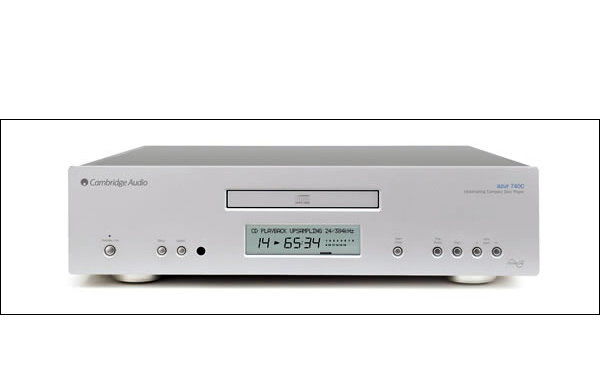

740C – Premium CD Spieler
D/A Converters: Dual Wolfson WM8740 24-bit DACs

Frequenzbereich: 20Hz to 20kHz (+/-0.1dB)

THD @ 1Khz 0dBFs: <0.0008%

THD @ 1kHz -10dBFs: <0.0005%

THD @ 20kHz 0dBFs: <0.001%

Inter Modulation Distortion (IMD) (19/20kHz) 0dBFs: <0.0006%

Linearity @ -90dBFs: +/-0.5dB

Stopband rejection (>24kHz): >115dB

Signal to Noise Ratio A-wtd: >113dB

Total correlated jitter: <130pS

Crosstalk @ 1kHz: <-130dB

Crosstalk @ 20kHz: <-110dB

Output Impedance: <50 Ohms

Digital input word widths supported: 16 - 24-bit

Digital output word widths supported: 16, 20, 24-bit

Digital input sampling frequencies supported: 32, 44.1, 48, 88.2, 96, 176.4, 192kHz

Digital output sampling frequencies supported: 32 - 192kHz pass through
(Including 44.1kHz for CD)

Audio output up-sampling: Fixed 24-bit, 384kHz

Abmessungen (B x H x T): 115 x 430 x 315mm
4.5 x 16.9 x 12.4"

Gewicht: 6.4kg (14.1lbs)
