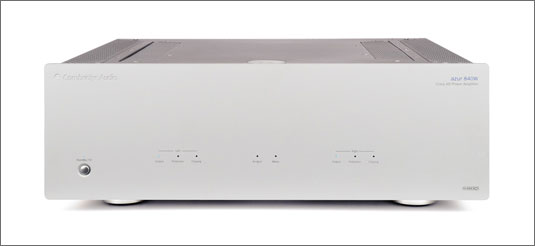

Azur 840W Class XD™ power amplifier
Power Output: 200 Watts per channel into 8 Ohms
350 Watts per channel into 4 Ohms
500 Watts mono into 8 Ohms in bridged mode
800 Watts mono into 4 Ohms in bridged mode

Audio Inputs: 1 pairs gold plated RCA stereo phono inputs
1 pair XLR balanced inputs

Audio Outputs: 1 pairs gold plated RCA stereo phono outputs
1 pair XLR balanced outputs

Connections: 12v trigger in/out, control bus in/out, IR emitter in.
A & B speaker premium gold plated binding posts

Damping factor: >125 at 1 kHz

Frequency Response: 5Hz – 80kHz +/- 1dB

Signal to Noise Ratio: >90 dB (unweighed)

THD (unweighted): <0.001% 1kHz
<0.005% 20Hz - 20kHz

Power Consumption: Maximum 2400 Watts
Active (no signal) <180Watts
Standby <5 Watts


Dimensions (W x D x H): 430 x 365 x 148mm

Weight: 19.1kg/42.1 lbs
