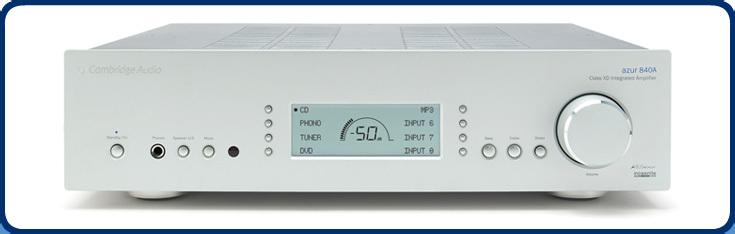

Azur 840A (Version 2) Class XD amplifier
Power Output: 120W RMS into 8 Ohms
200W RMS into 4 Ohms

Input Impedance: Input 1 (balanced) 20 kOhm
Inputs 2-7 20 kOhm
Tape Input 20 kOhm

THD (unweighted): < 0.001% 1 kHz at 80% of rated power
< 0.01% 20 Hz - 20 kHz at 80% of rated power

Frequency Response: 10 Hz - 50 kHz +/- 1 dB

Signal to Noise Ratio: > 93 dB

Power amp damping factor: > 110 at 1 kHz

Max. Power Consumption: 800W

Min. Power Consumption: Active (no signal) 70W
Standby 7W

Bass: Max bass boost/cut +/- 10 dB at 10 Hz

Treble: Max treble boost/cut +/- 7.5 dB at 20 kHz

Dimensions (H x W x D): 115 x 430 x 385mm
(4.5 x 16.9 x 15.2”)

Weight: 15.0kg (33Lbs)
