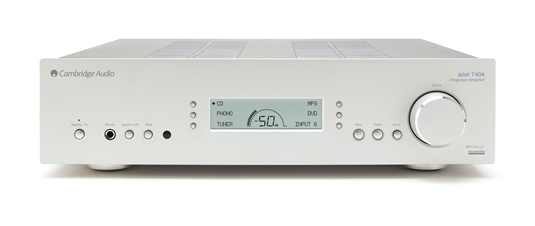

Azur 740A amplifier
Power Output: 100W RMS into 8 Ohms
150W RMS into 4 Ohms

THD (unweighted): < 0.001% 1 kHz at 80% of rated power
< 0.01% 20 Hz - 20 kHz at 80% of rated power

Frequency Response: 10 Hz - 50 kHz +/- 1 dB

Signal to Noise Ratio: >96dB (ref 1W/8 Ohm)

Input Impedance: Inputs 1-6 47 kOhm
Tape Input 47 kOhm

Power amp damping factor: > 110 at 1 kHz

Max. Power Consumption: 750W

Min. Power Consumption: Active (no signal) 45W
Standby 6W

Bass: Shelving type
Max bass boost/cut
+/- 10 dB at 10 Hz

Treble: Shelving type
Max treble boost/cut
+/- 7.5 dB at 20 kHz

Dimensions (H x W x D): 115 x 430 x 350mm
4.5 x 16.9 x 13.8"

Weight: 10.7kg (23.5Lbs)
