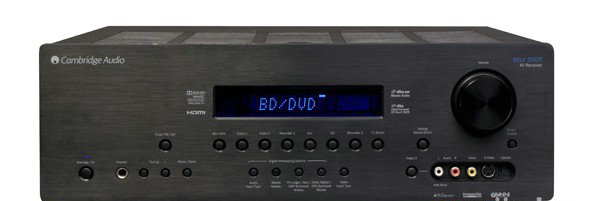

Azur 650R 7.1 AVR mit HDMI 1.3c Empfang und Verarbeitung
HDMI Switching 1.3c, 3 inputs 1 output

Analogue video up-conversion transcode any analogue format upwards to the other analogue formats and to HDMI

HDTV capable via component video or HDMI/DVI

Decoding formats: LPCM, Dolby Digital / Dolby Digital EX, DTS / DTS ES Matrix/Discrete, PLII/PLIIx, DTS Neo:6, Dolby True HD, Dolby Digital Plus, DTS-HD Master Audio, DTS-HD High Resolution Audio, Multi-channel PCM. All in 5.1/6.1 or 7.1 variants

32-bit DSPs, 24/192 capable DACS

Post processed Dolby / DTS modes (convert 5.1 to 7.1) Post process 5.1 or 6.1 formats with PLIIX or Neo:6 to 7.1

On-Screen Display (OSD) Available via composite video, S-video, component video and HDMI

Separate stereo DAC for left/right from surround channel codec

Audio Inputs: 8 line analogue, tuner (FM/AM), 7.1 analogue input, 5 digital coaxial, 6 digital optical

Video Inputs: 5 composite, 5 s-video, 3 component video, 3 HDMI

Audio Outputs: 7 amplified speaker outputs, 7.1 preamp outputs

Video Outputs: 1 composite, 1 s-video, 1 component video, 1 HDMI

Recording Audio outputs: 2 line level analogue, 2 digital coaxial, 2 digital optical

Recording Video Outputs: 1 composite, 1 s-video

Other Connections 1 1/4" / 6.35mm headphone output,
Control bus input/output, 1 IR emitter In, 1 RS232C, 1 IEC type mains inlet

Incognito Ready ™ 2 Incognito keypad outputs (2nd/3rd Zone), 3 IR emitter outputs, 2 composite video outputs (2nd/3rd Zone), 1 external power supply input 24VDC

Audio split mode Watch and listen to different sources

Bi-amp mode Bi-amplify front left/right speakers when in a 5.1 set-up

Full function aluminium face Azur Navigator remote

Audio:

Ausgangsleistung: 7 x 100 watts rms per channel, 8 ohms (all 7 channels driven)
2 x 120 watts rms per channel, 8 ohms (two channels driven)

THD: <0.006% @1kHz

Crosstalk: <-60dB @ 1kHz

Frequenzbereich: 10Hz -20kHz - 1dB

Signal to Noise Ratio: >90dB ‘A’ weighted

Audio input impedance/sensitivity 47kOhms/175mV or greater

Digital input impedance: 75ohms (coaxial/SPDIF)

Tone Controls: Bass +/-10dB @ 100Hz
Treble +/-10dB @ 10Hz

Tuner: FM mode / RDS 87.5-108MHz, 75 ohm coaxial aerial
AM mode 522-1629Hz, 300 ohm loop aerial

General

Quiescent power consumption: <70w

Standby Power Consumption: <1W

Max. Leistungsaufnahme: 1400w

Abmessungen (B x H x T): 150 (inc feet) x 430 x 420 (inc volume knob and speaker terminals) mm
(5.9 x 16.9 x 16.5 inches)

Gewicht: 15kg (33lbs)
