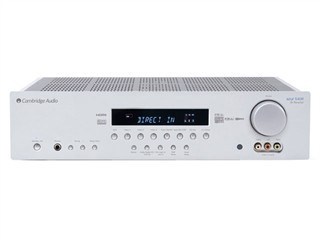

Azur 340R 5.1 HDMI AV Receiver
Ausgangsleistung: 80 Watts RMS per channel, 8 ohms, two channels driven. 50 Watts RMS per channel 8ohms, all 5 channels driven

Architecture: CS42518 Multi-DAC, CS493263 DSP

Analogue connections: Inputs: 6 Line Level + Tuner, 5.1 Direct Input
Outputs: 6 Amplified Speaker Outputs, RCA Subwoofer out, 1 Tape record output

Digital connections: Inputs: 3 Co-Axial, 3 Optical
Outputs: 1 Co-Axial, 1 Optical

Video connections: Inputs: 4 CVBS, 3 SVHS, 2 Component Video, 2 HDMI
Outputs: 1 CVBS, 1 SVHS,1 Component Video, 1 HDMI

Frequenzbereich: 20Hz – 20kHz +/- 1dB

Crosstalk: <-60dB

THD (unweighted): <0.006% @ 1kHz, <0.012% @ 20Hz – 20kHz

Max. Leistungsaufnahme: 400 Watts (Standby: <10 Watts)

Dimensions (W x D x H): 430 x 310 x 100mm

Gewicht: 8.7kg/19.1lbs
