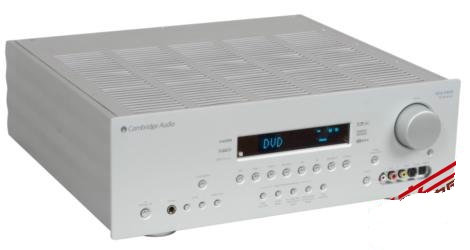

Azur 640R 7.1 HDMI AV Receiver
Ausgangsleistung: 2 x 120 watts rms per channel, 8 ohms (two channels driven)
7 x 100 watts rms per channel, 8 ohms (all 7 channels driven)

THD: <0.006% @1kHz

Crosstalk: <-60dB @ 1kHz

Frequenzbereich: 10Hz -20kHz - 1dB

Signal to Noise Ratio: >90dB ‘A’ weighted

Decoding formats: PCM, Dolby EX, DTS ES, DTS Matrix/Discrete, PLII/ PLIIx, DTS Neo:6 all in 5.1/6.1 or 7.1 variants
DTS 96/24

Audio Inputs: 8 line analogue, tuner (FM/AM), 7.1 analogue input, 5 digital coaxial, 6 digital optical

Video Inputs: 5 composite, 5 s-video, 3 component video, 3 HDMI

Audio Outputs: 7 amplified speaker outputs, 7.1 preamp outputs

Video Outputs: 1 composite, 1 s-video, 1 component video, 1 HDMI

Recording Audio outputs: 2 line level analogue, 2 digital coaxial, 2 digital optical

Recording video outputs: 1 composite, 1 s-video

Connections: 1 1/4" / 6.35mm headphone output,
Control bus input/output, 1 IR emitter In, 1 RS232C, 1 IEC type mains inlet

Audio input impedances: 47kOhms/175mV or greater

Digital input impedance: 75ohms (coaxial/SPDIF)

Tone Controls: Bass +/-10dB @ 100Hz
Treble +/-10dB @ 10Hz

Tuner: FM mode / RDS 87.5-108MHz, 75 ohm coaxial aerial AM mode 522-1629Hz, 300 ohm loop aerial

Standby Power Consumption: <10w

Quiescent power consumption: <70w

Max. Leistungsaufnahme: 1400w

Abmessungen (B x H x T): 150 x 425 x 420mm
5.9 x 16.7 x 16.6"

Gewicht: 15kg (33lbs)
