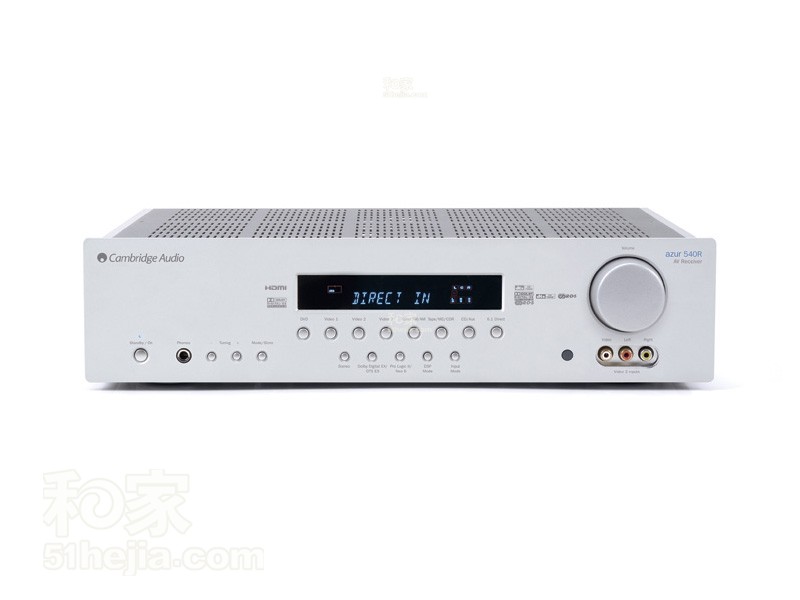

Azur 540R (Version 3) 6.1 HDMI AV Receiver
Ausgangsleistung: 100 watts rms per channel @ 8 ohms, 2 channels driven

80 watts rms per channel @ 8 ohms, all channels driven

Architecture: CS42518 multi DAC
CS493263 DSP

Audio Inputs: 6 line level + tuner + 6.1 direct

Audio Outputs: 6 amplified speaker outputs
6.1 pre amp
1 tape

Video Inputs: HDMI (2)
Composite (3)
S-Video (2)
Component video (2)

Video Outputs: HDMI (1)
Composite (1)
S-Video (1)
Component video (1)

Digital Inputs: Coaxial (4)
Optical (4)

Digital Outputs: Coaxial (1)
Optical (1)

Decoding formats: DD-ES-EX/PLII/DTS/EX/ES/Neo6

Frequenzbereich: 20Hz – 20kHz +/- 1dB

Crosstalk: <-60dB

THD (unweighted): <0.006% @ 1kHz, <0.012% @ 20Hz – 20kHz

Max. Leistungsaufnahme: 615 Watts

Standby Power Consumption: <10w

Dimensions (W x D x H): 430 x 310 x 100mm

Gewicht: 9.5kg/20.9lbs
